Detect Leaks with Thermal Imaging

Inspectahire relies on the FLIR GF320 Optical Gas Imaging camera for maintenance inspections and hydrocarbon leak detection in the offshore oil and gas industry.

inspectahire

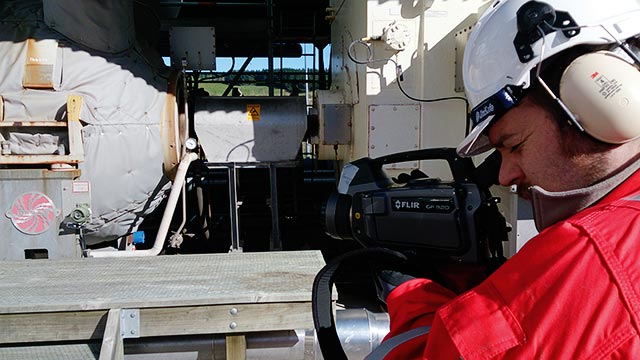

Thanks to thermal imaging cameras, Inspectahire can easily detect gases in difficult to reach or hazardous locations.

Established in 1981, Inspectahire is a leading international supplier of specialist remote visual inspection technology and solutions to companies in many industries around the world. Supported by the most advanced technologies around, Inspectahire helps its customers manage their safety, profitability and environmental impact of their assets. When the company is tasked with the detection of fugitive hydrocarbon emissions, FLIR’s GF320 Optical Gas Imaging (OGI) camera is their preferred choice of technology.

Inspectahire offers equipment rental, contracting and project engineering services supported by a team of skilled engineers who have a wealth of inspection knowledge and experience. Their expertise extends to a wide range of equipment and assets, both onshore and offshore, and in all environments – including harsh and hazardous. All Inspectahire’s advanced inspection solutions are carried out in accordance with the requirements of ISO 9001 best practice.

FIG_4_Ben-using-GF

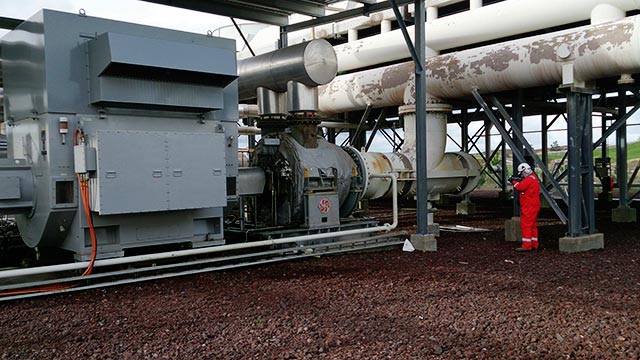

Small leaks can become big ones – that is why it is important to be able to detect them in an early stage.

Oil and Gas Industry

Having worked for three decades in the Oil & Gas industry, both in the North Sea and worldwide, Inspectahire has built up a strong expertise in this sector. Safety and cost are two of the biggest concerns in the offshore oil and gas industry today. Inspectahire realizes this as no other and therefore aims to tackle those challenges by using the best technologies available.

– The offshore oil and gas industry are proactive in their search for the best technologies for detecting emissions that may affect the safety, profitability and environmental impact of their assets, comments Cailean Forrester, Managing Director of Inspectahire.

– At Inspectahire we strive to identify and offer the best available technological solutions for all remote inspection scenarios.

Safety and Economy

Dangerous gas leaks are a concern to every oil and gas production plant. Not only do some of the gases harm the environment, but the leaks also cost companies substantial amounts of money.

– The company has been using thermal imaging cameras for a very long time to detect dangerous gas leaks, comments Cailean Forrester.

– Thanks to thermal imaging cameras, we can easily detect gases in difficult to reach or hazardous locations. And we can help companies prevent costly downtime of their production plant.

FIG_1_Afbeelding-4

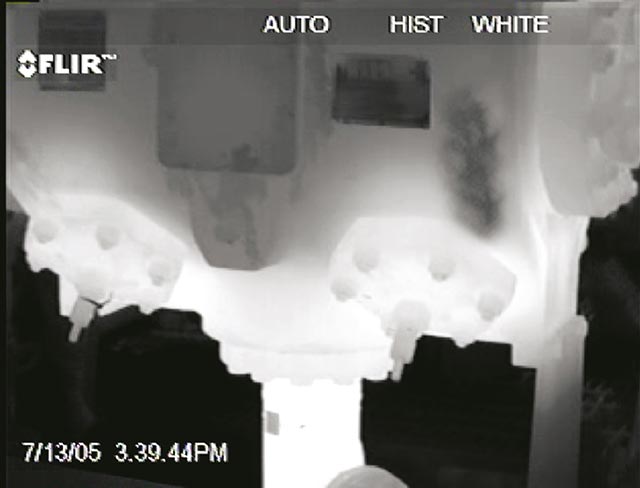

Inspectahire has been using thermal imaging cameras for a long time to detect dangerous gas leaks.

Contact Measurement Technologies versus Thermal Imaging

– We have been using certain contact measurement tools like laser detectors or leaks sniffers, says Cailean Forrester.

– But the problem is that you have to go right up to the object, which is not always safe or even possible. In other words, this approach is limited and not very precise. With a thermal imaging camera like the GF320 however, you can keep a safe distance and still detect gas leaks with great precision.

FIG_3_Afbeelding-2-IR

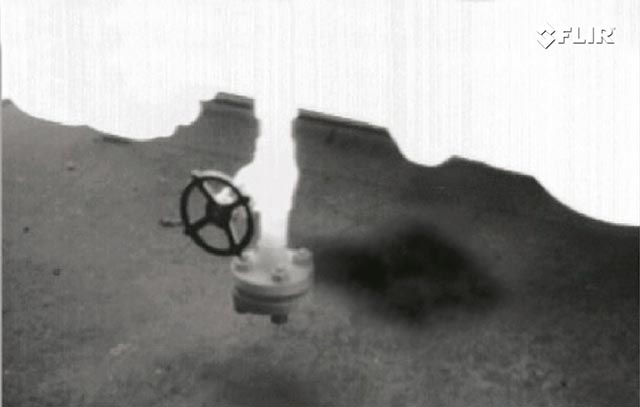

With the GF320 camera, you can keep a safe distance and still detect gas leaks with great precision.

Accurate and Ergonomic

The Inspectahire team is using the GF320 optical gas imaging camera for maintenance inspections and for all its hydrocarbon detection jobs, in hydrocarbon production plants or for the inspection of any material that uses hydrocarbon as a fuel.

Maddelein_Kristof_Flir

Kristof Maddelein
FLIR Systems

kristof.maddelein@flir.com

The GF320 camera offers a range of tangible benefits compared to traditional hydrocarbon leak sniffers, because it can scan a broader area much more rapidly and monitor areas that are difficult to reach with contact measurement tools. The portable camera also greatly improves operator safety, by detecting emission at safe distance.

– The camera is very ergonomic and very sensitive, comments Cailean Forrester.

– If a hydrocarbon leak is there, you will certainly see it with the GF320 camera, even if it is a small one. Small leaks can become big ones – that is why it is important to be able to detect them at an early stage. With the GF320, we are sure of an accurate and reliable detection.

FIG_5_GasFindIR_320_3Q_left_lcd1

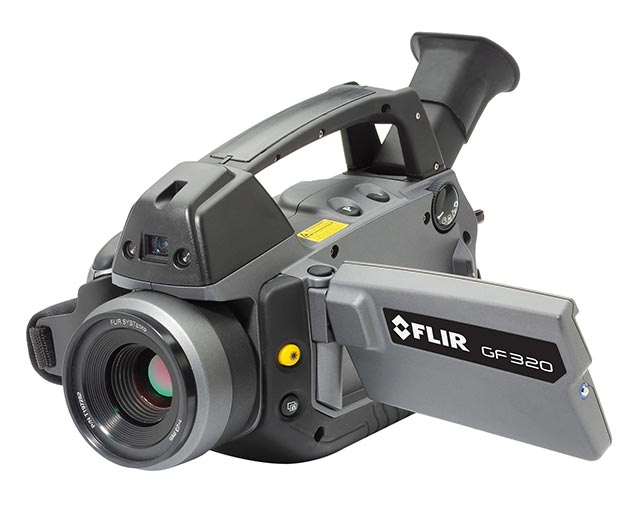

The FLIR GF320 Optical Gas Imaging (OGI) cam

GF320 Optical Gas Imaging (OGI) camera The FLIR GF320 is an optical gas imaging camera designed to help the oil and gas industries better control hydrocarbon emissions, thereby preserving the environment, improving operational safety and minimizing revenue loss.

The thermal imaging camera is designed for use in harsh industrial environments. It takes advantage of a state-of-the-art focal plane array detector and optical systems tuned to very narrow spectral infrared ranges. This enables the camera to image infrared energy absorbed by hydrocarbon gas leaks.

Images are processed and enhanced by the FLIR High Sensitivity Mode feature to clearly show the presence of gases against stationary backgrounds.

Gases detectable by the camera appear on-screen as smoke plumes. In the offshore oil and gas industry, the camera offers operators a preventive maintenance tool to help spot hydrocarbon leaks in tanks, pipelines and facilities. The FLIR GF320 can be used both for finding gas leaks and maintenance inspections.
