Save Money and Improve Safety in Lubrication

Driven by a gas producing dry cell, the Simalube is unrivalled in its wide range of applications and high quality.

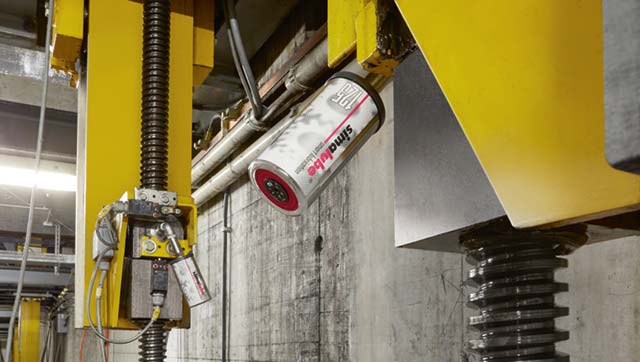

Bahnindustrie_SBB

With its unique technology, Simatec ag from Wangen an der Aare in Switzerland is the most successful manufacturer of automatic lubricators. That is why millions of grease and oil dispensers are being used successfully around the globe in all industries where there is turning or movement and where power is converted.

Using Simalube pays off in many ways. Manual lubrication is no longer required. As a result of the time saving alone, costs are considerably reduced and manpower resources are freed up for profitable tasks in the value chain. With manual lubrication, bearings are usually over- or under-lubricated, which causes them to overheat or dry up, resulting in mechanical failure and unplanned downtime.

The lubricator ensures a reliable and even application of lubricant, resulting in less damage to bearings and longer machine operating times. The Simalube closed system prevents any penetration of dirt. This extends the service life of the lubricated components and ensures reliable operation of the equipment. And last but not least, no lubrication points are overlooked or forgotten.

Greater Operational Safety

Lubrication points are often located in places that are difficult and dangerous to access. Simalube helps reduce the number of maintenance and inspection rounds required. The automatic dispenser makes it easier to comply with occupational safety standards, which in turn results in significantly fewer occupational accidents.

The lubricators are tested according to the latest standards of product safety. They are approved for use in all areas with potentially explosive atmospheres, with gases, dusts and even in mining. Approval certificates can be requested from the manufacturer.

The dispenser can be used easily in all industry sectors. Water treatment plants, the automobile industry, chemical plants, foodstuffs manufacturers and underground mines; even hospitals and clinics trust in the Swiss lubricator.

There is also a vast range of possible applications: conveyor belts, fans, motors, pumps, cooling and heating units, chains and guides are all reliably supplied with grease or oil by the Swiss lubricators. Simalube works upside down and even under water. Its operating temperature range is from -20 °C to +55 °C.

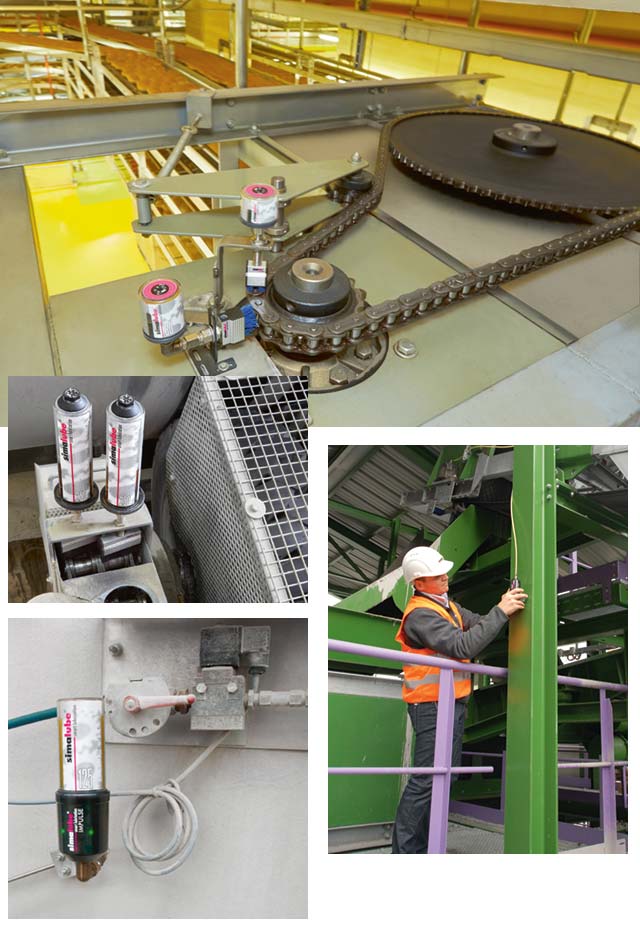

Lebensmittel_Fortisa4

The automatic lubrication can easily be installed everywhere, in any position and 360 degrees around its own axis. When properly installed and operating, the LED indicator on the simalube® IMPULSE flashes green at regular intervals. Red flashes signal overpressure, inactive and empty conditions.

How the Technology Works

Simalube automatically lubricates for periods from one month up to a year. The required time period can be adjusted on the dispenser. It is driven by the globally patented gas producing dry cell. The gas generated by the cell builds up the excess pressure in the dispenser behind a piston, and this automatically and evenly pushes the lubricant into the lubrication point.

The grease and oil dispenser is screwed in directly at the lubrication point instead of the grease nipple. The practical parts in the manufacturer’s accessories range ensure that the automatic lubrication can easily be installed everywhere, in any position and 360 degrees around its own axis.

Environmentally Friendly Disposal

When the lubricator is empty, it can easily be refilled or disposed of in an environmentally friendly way. This is possible because the dispenser does not contain any toxic liquids such as acids, and all parts can be recycled. The gas producing dry cell is disposed of like an ordinary battery, and the empty dispenser case is disposed of in the same way as normal waste.

The Simalube comes in five different sizes (15ml, 30ml, 60ml, 125ml and 250ml), with over ten tried and tested standard lubricants. This ensures far greater flexibility of use.

The manufacturer also provides empty dispensers for customers to fill with their own grease or oil. This is a major benefit for users who can thus use their own tried and tested lubricants. Accessories developed are used for many different and complex applications of Simalube lubricators.

Sonderegger-Ivo

Ivo Sonderegger

simatec ag, Switzerland,
ivo.sonderegger(at)simatec.com

www.simatec.com
